Pellet Boiler/Stove

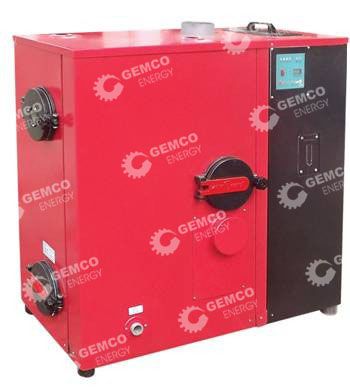

Series C Small Biomass Pellet Boiler
Brief Description
Our series C small biomass pellet boiler is designed for villas, small hotels, commercial clubs, and household heating demand. It owns fully automatically control system.
For boilers under 55kw heat power, adopting with assembled high-temperature burner and a heat recovery system installed inside. As small body size and less fuel consumption, simple structure and few return stroke, the temperature at the outlet can keep around 180°C.
For heat power from 80kw to 240kw, adopting with divided assembled structure, one for boiler body with high temperature burner, the other for heat recovery system individually.
Main Features
- Applicable for wood pellet
- Automatic operation
- Built-in dust collector,no need to an add-on funnel, no smoke & dust
- One day's running after one feeding
- Delicate appearance and nice colors.
- Create two years’ trouble-free operation
- Easy to operate , and simple maintenance
Technical parameters
| Item | CLHS-0.0175 | CLHS-0.024 | CLHS-0.035 | CLHS-0.035 | CLHS-0.054 | ||
|---|---|---|---|---|---|---|---|
| Rated heating power | 104kcal | 1.5 | 2.2 | 3 | 3.8 | 4.5 | |
| Operation pressure | Mpa | Standard pressure | |||||
| Thermal efficiency | % | 91.15 | |||||
| Weight | kg | 238 | 238 | 269 | 269 | 269 | |
| Fan | KW | G014 | G014 | G014 | G014 | G011 | |
| Fuel consumption | kg/h | 2.65 | 3.8 | 5.7 | 7.1 | 7.9 | |
| Water-outlet diameter | mm | φ40 | φ40 | φ40 | φ40 | φ40 | |
| Heating area | M2 | 80-120 | 120-150 | 200-250 | 250-320 | 320-500 | |
| Water capacity | M3 | 0.15 | 0.15 | 0.25 | 0.25 | 0.25 | |
| Water yield | T/h | 0.26 | 0.35 | 0.56 | 0.72 | 0.9 | |
| Dimension | Mm |
1093X550 X1182 |
1093X550 X1182 |
1093X550 X1182 |
1093X640 X1252 |
1093X640 X1252 |
|
| Item | CLHS-0.08 | CLHS-0.12 | CLHS-0.175 | CLHS-0.24 | |
|---|---|---|---|---|---|
| Rated heating power | 104kcal | 7 | 10 | 15 | 20 |
| Operation pressure | Mpa | Standard pressure | |||
| Thermal efficiency | % | 91.15 | |||
| Fan | KW | 0.25 | 0.25 | 0.37 | 0.37 |
| Smoke-outlet diameter | mm | φ165 | φ165 | φ220 | φ220 |
| Water-outlet diameter | mm | φ57 | φ57 | φ70 | φ70 |
| Furnace weight | kg | 308 | 370 | 415 | 475 |
| Boiler weight | kg | 219 | 250 | 300 | 368 |
| Fuel consumption | kg/h | 11.34 | 16.2 | 25.7 | 34.2 |
| Heating area | M2 | 500-700 | 700-920 | 920-1400 | 1400-1800 |
| Water capacity | M3 | 0.67 | 0.73 | 0.93 | 1.31 |
| Water yield | T/h | 1.65 | 2.2 | 3.5 | 4.5 |
| Furnace dimension | Mm | 1095×655×1247 | 1095×705×1247 | 1150×760×1437 | 1211×830×1402 |
| Boiler dimension | Mm | 655×630×1347 | 715×680×1347 | 755×740×1437 | 875×840×1537 |

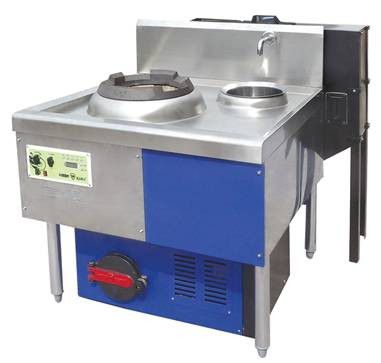

Super High Heat Cooking Stove
Break introduction
Y style biomass super high heat cooking stove is one of the greatest inventions of 21st century. It is the best choice for stewing, stir-frying and frying. It’s widely used in food-service industry, enterprises, schools, factory canteens etc.
Technology
Our super high heat cooking stove, is newly developed of non-chimney & free-smoke stove. It has anti-backfire device, which can protect the silo from backfiring.
It is safe and reliable to use. With automatic ignition & feeding system. Free to adjust the strength of the fire.
External storage hopper - It can run 6 to 10 hours continuously by once feeding.
Technical parameters
| Item | CLHS-0.08 | |
|---|---|---|
| Rated heating power | 104kcal | 7 |
| Rated voltage | V | 220 |
| Thermal efficiency | % | 91.15 |
| Fuel consumption | kg/h | 7-9 |
| Weight | kg | 150 |
| Dimension | Mm | 950×950×1000 |
| Hopper dimension | Mm | 500×500×850 |

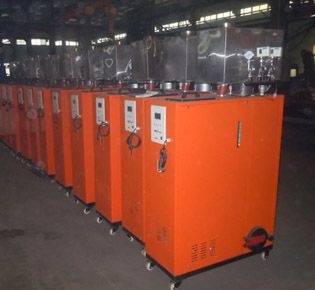

Biomass Small Steam Generator
The steam generator consists of boiler and auxiliary equipment. The boiler part is vertical structure. It owns following features: compact structure, small size, low noise, large heating area, high thermal efficiency, strong integrity, good stability, movable type, able to connect with soft or hard pipes, easy to install etc.
Application
Biomass steam generator is widely used in garment factories, dry cleaners, hotels, canteens, restaurants, mines, bean products factory and other places. It is also used in health care, bio-pharmaceutical industry, food industry and other places where need to sterilize apparatus and other stuff etc.
Technical parameters
| Item | G-0.03 |
|---|---|
| Rated steam capacity（kg/h) | 53.2 |
| Steam pressure（Mpa） | 0.55 |
| Saturated steam temperature（℃） | 155 |
| Water space（L） | 28.88 |
| Working voltage（V) | 220 |
| Fuel consumption（kg/h) | 15 |
| Steam outlet（DN) | 25 |
| Safety valve（DN) | 25 |
| Water inlet（DN) | 25 |
| Sewage outlet（DN) | 25 |
| Boiler dimension (mm) | 500×370×748 |
| Silo dimension (mm) | 1200×600×1200 |
| Transport weight（kg） | 430 |
| Thermal efficiency | 82% |
